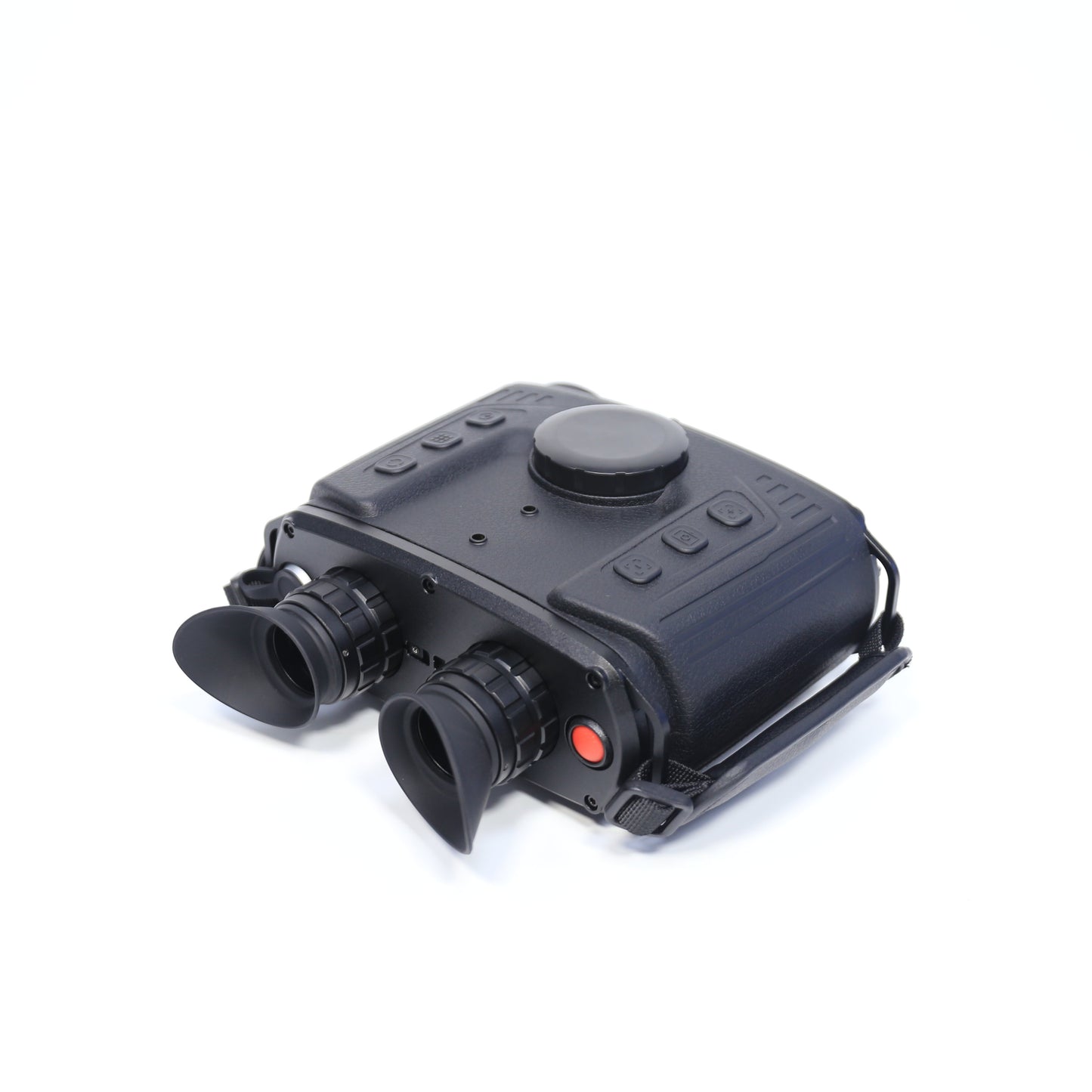

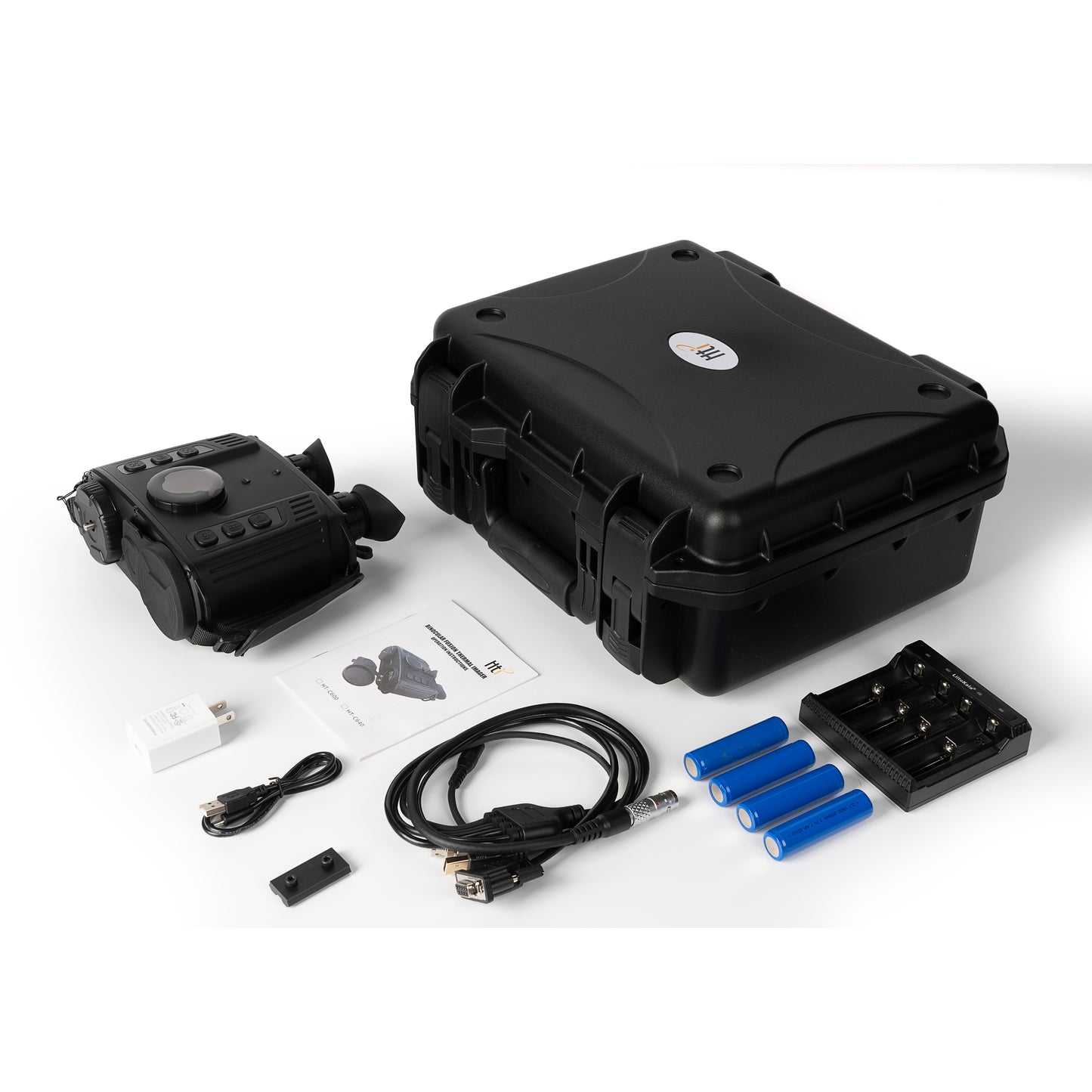

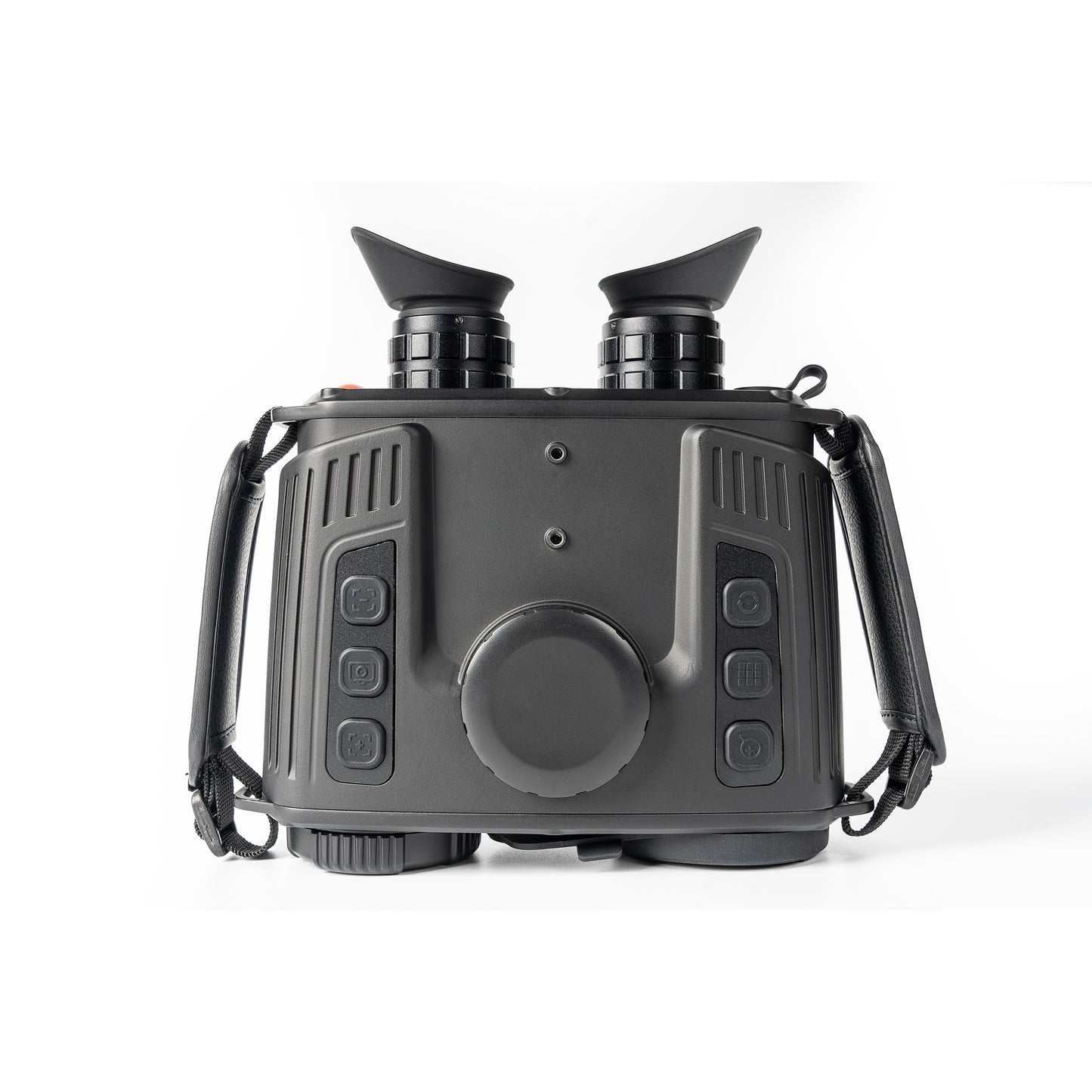

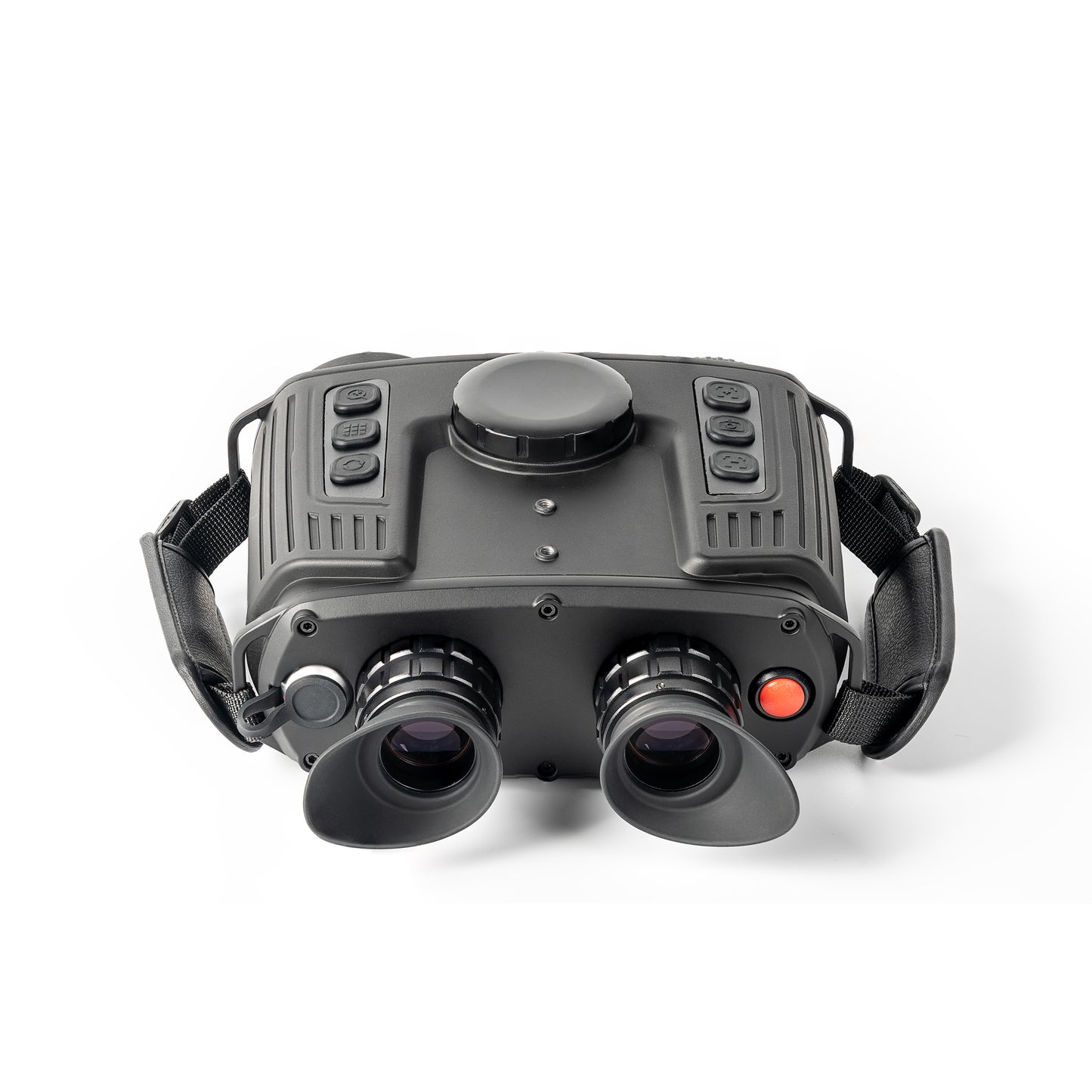

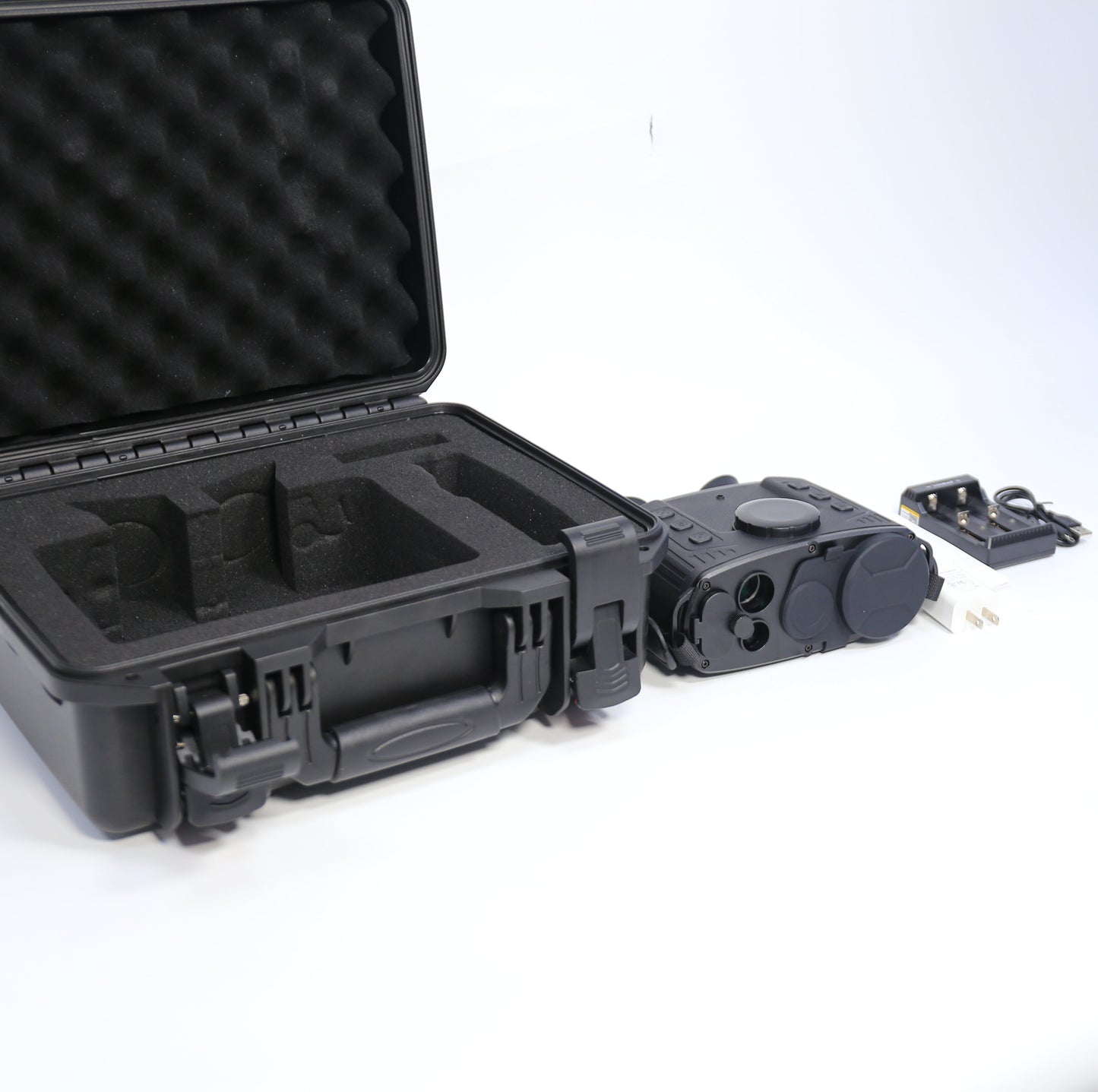

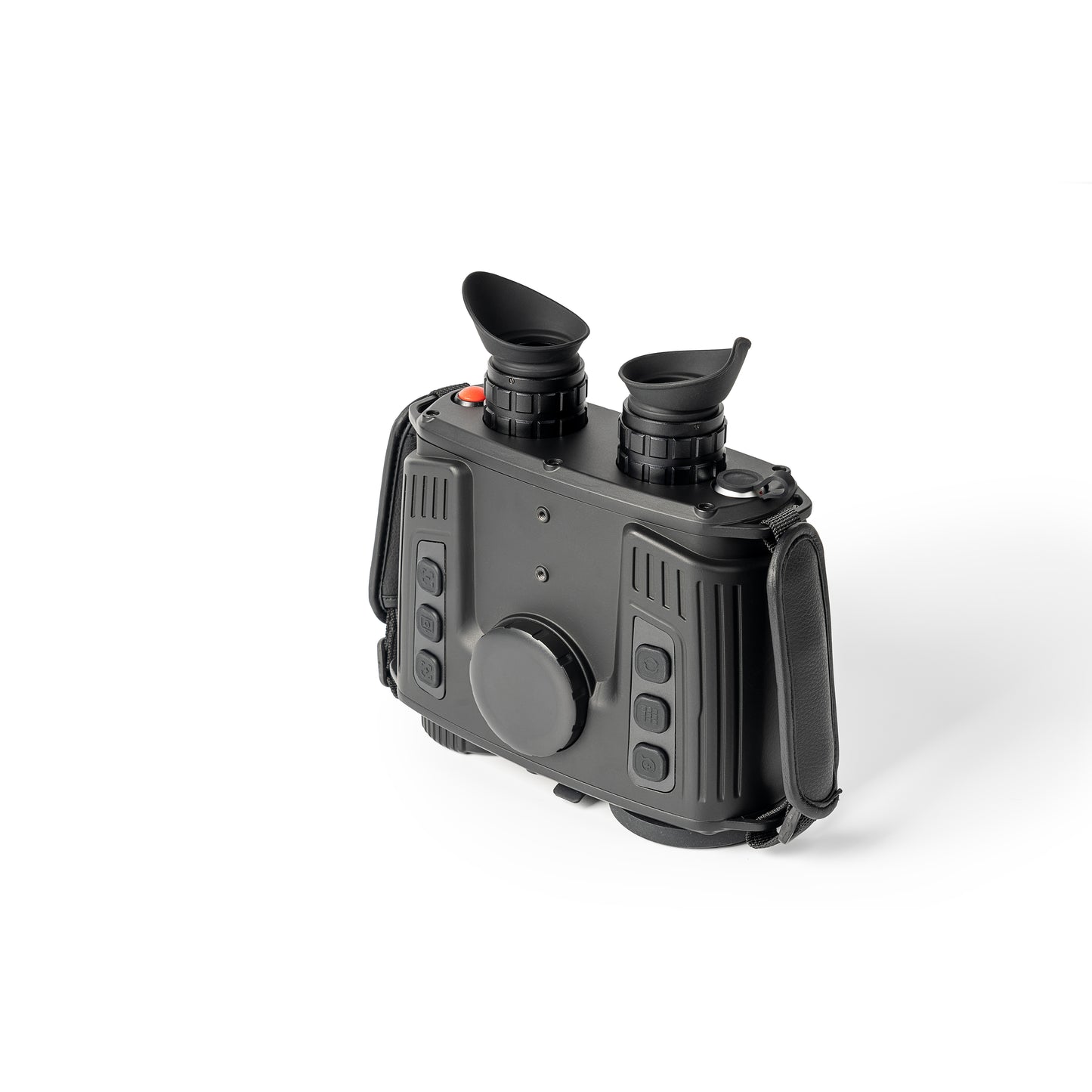

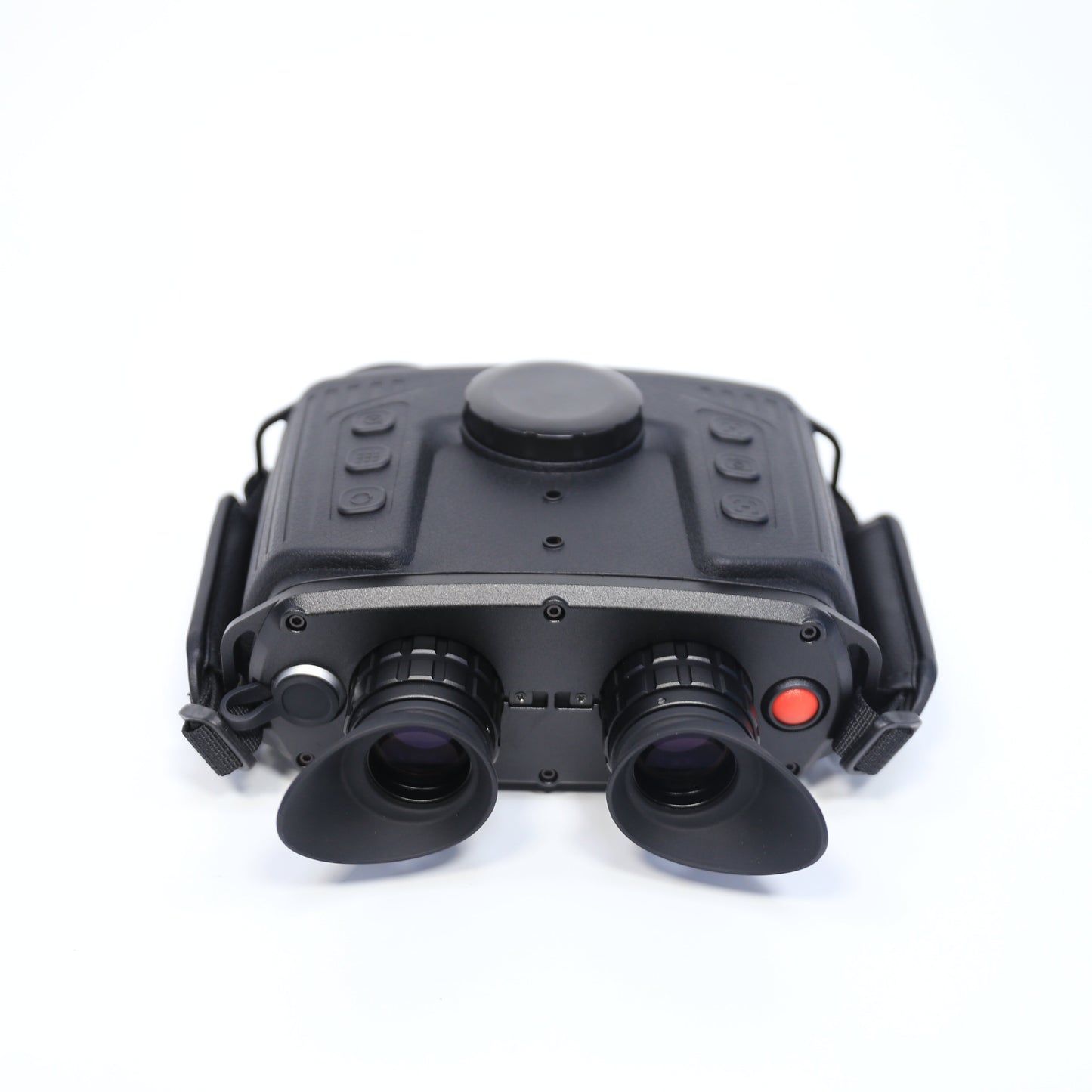

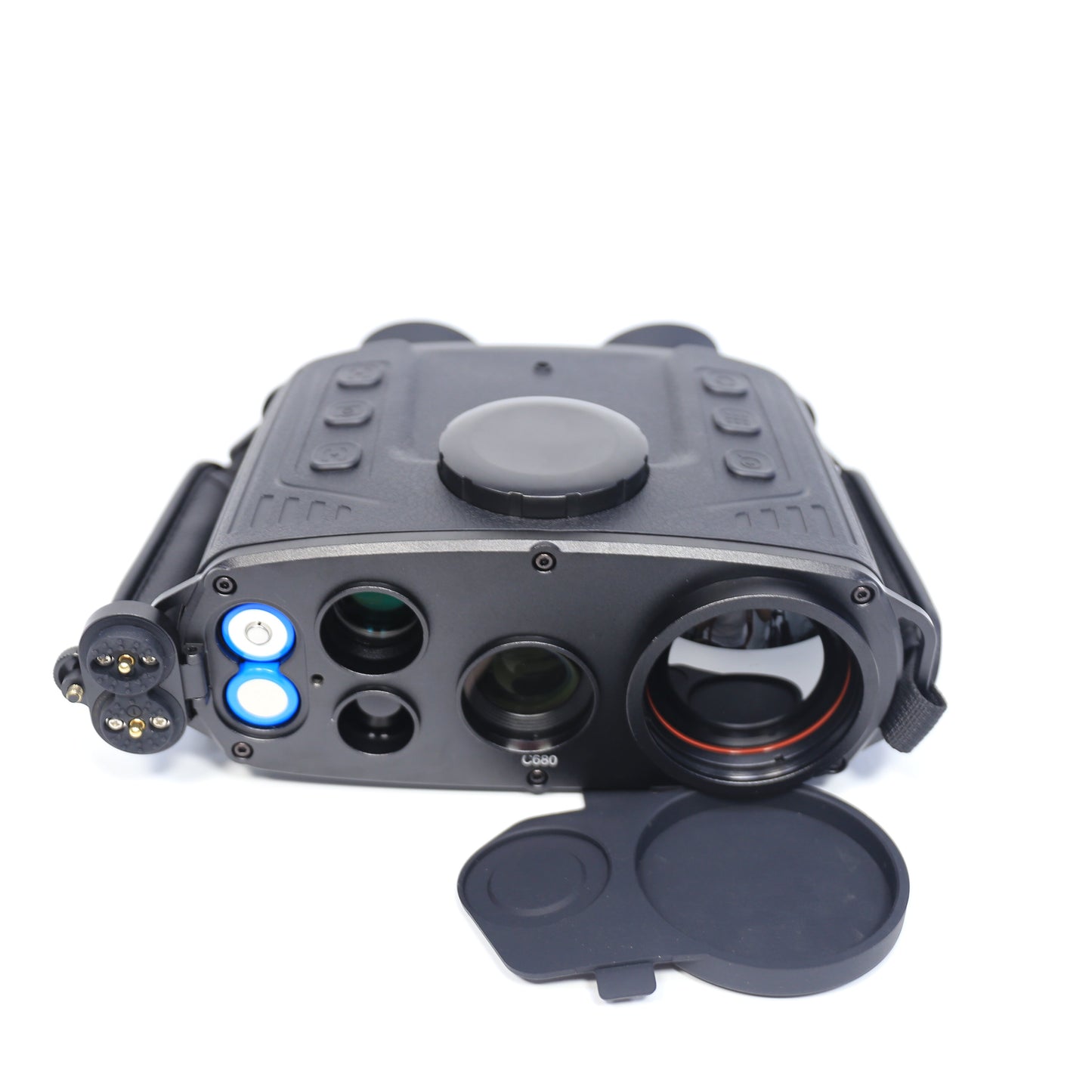

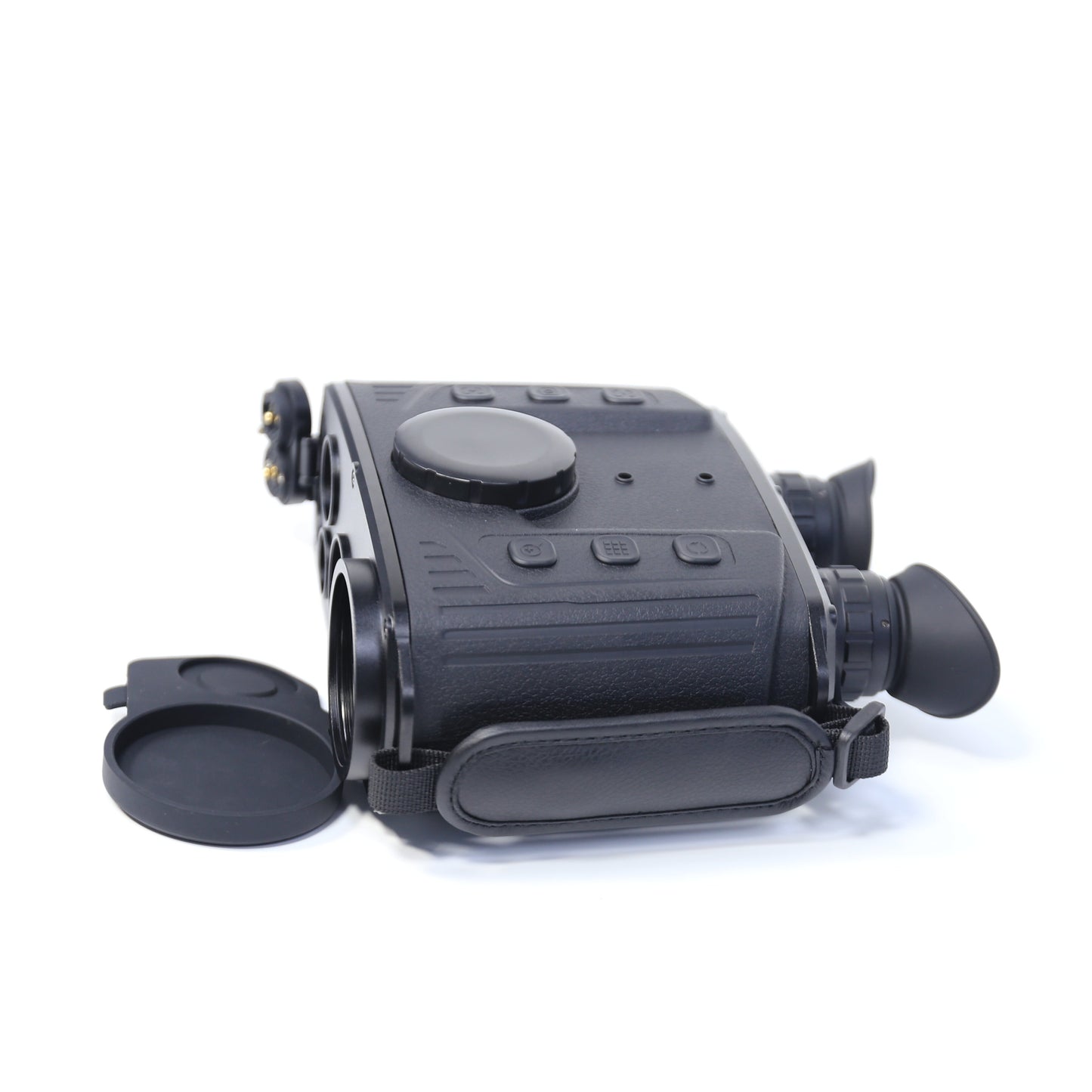

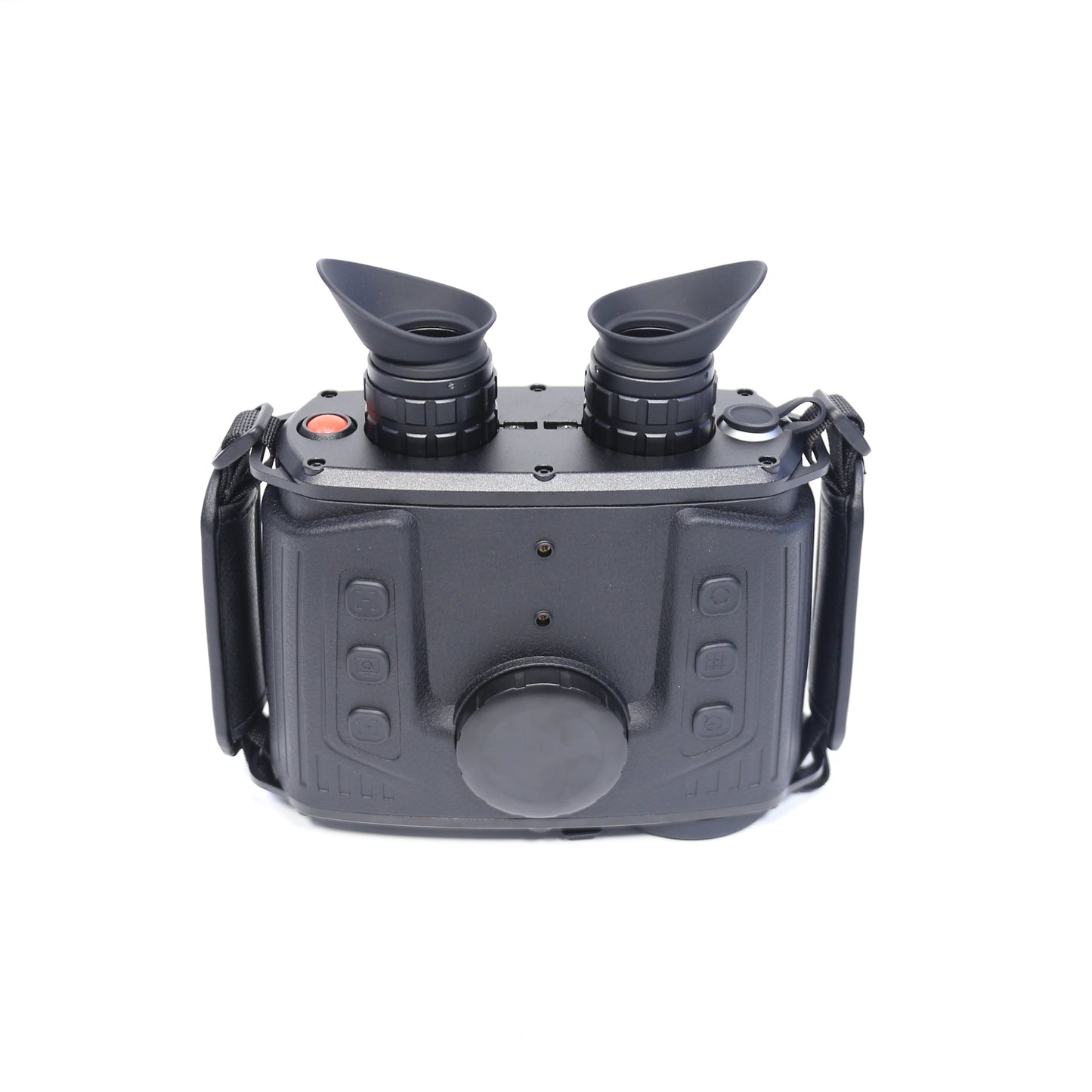

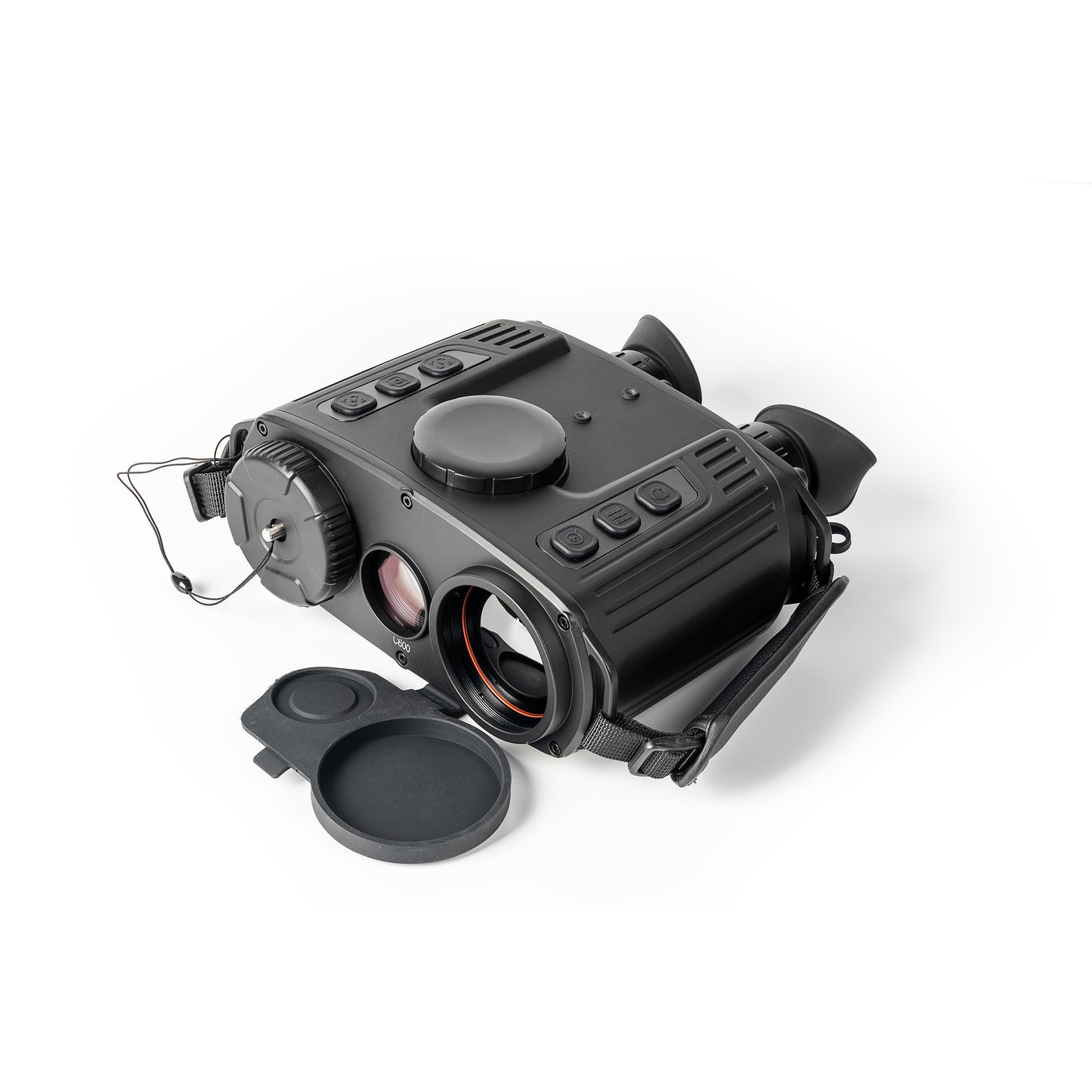

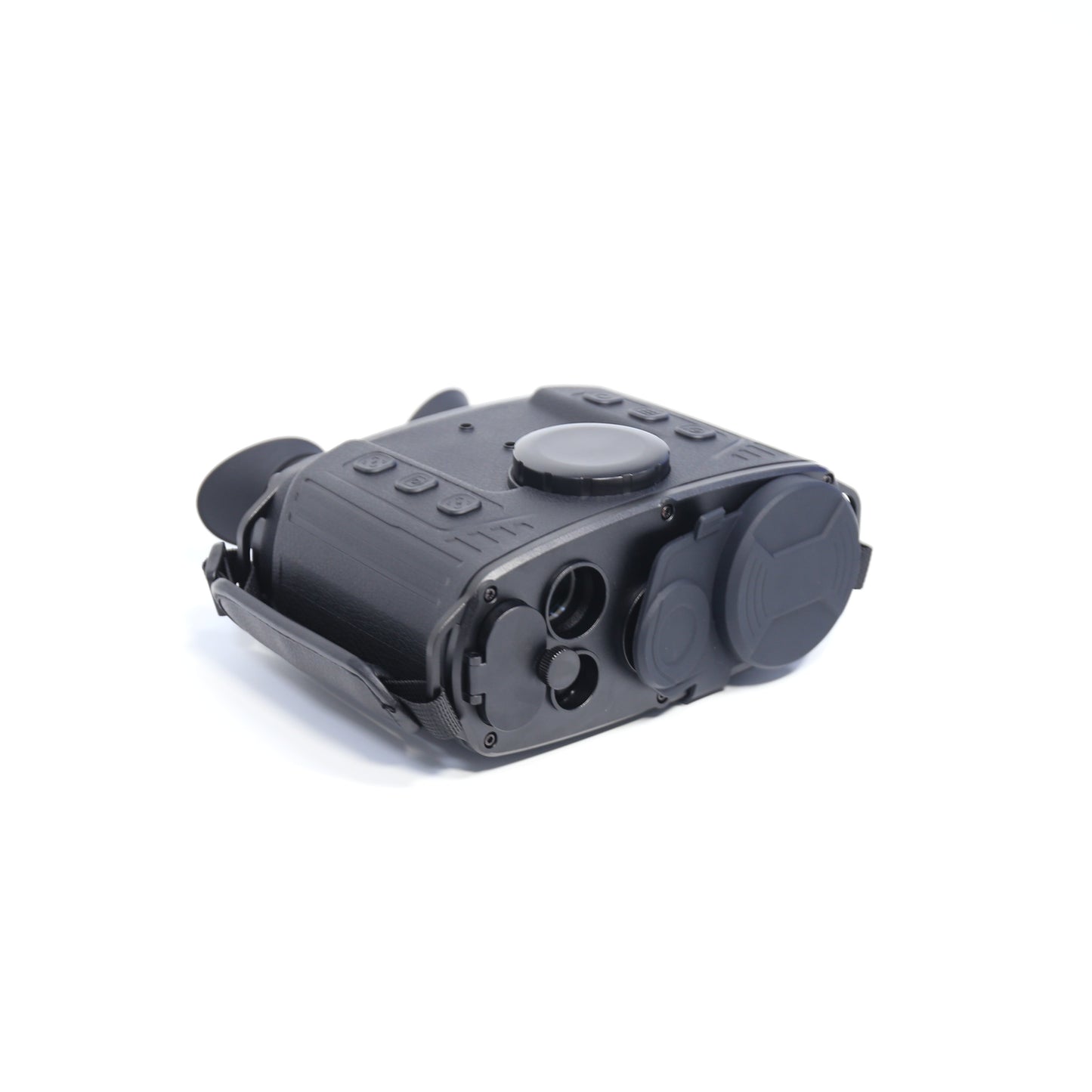

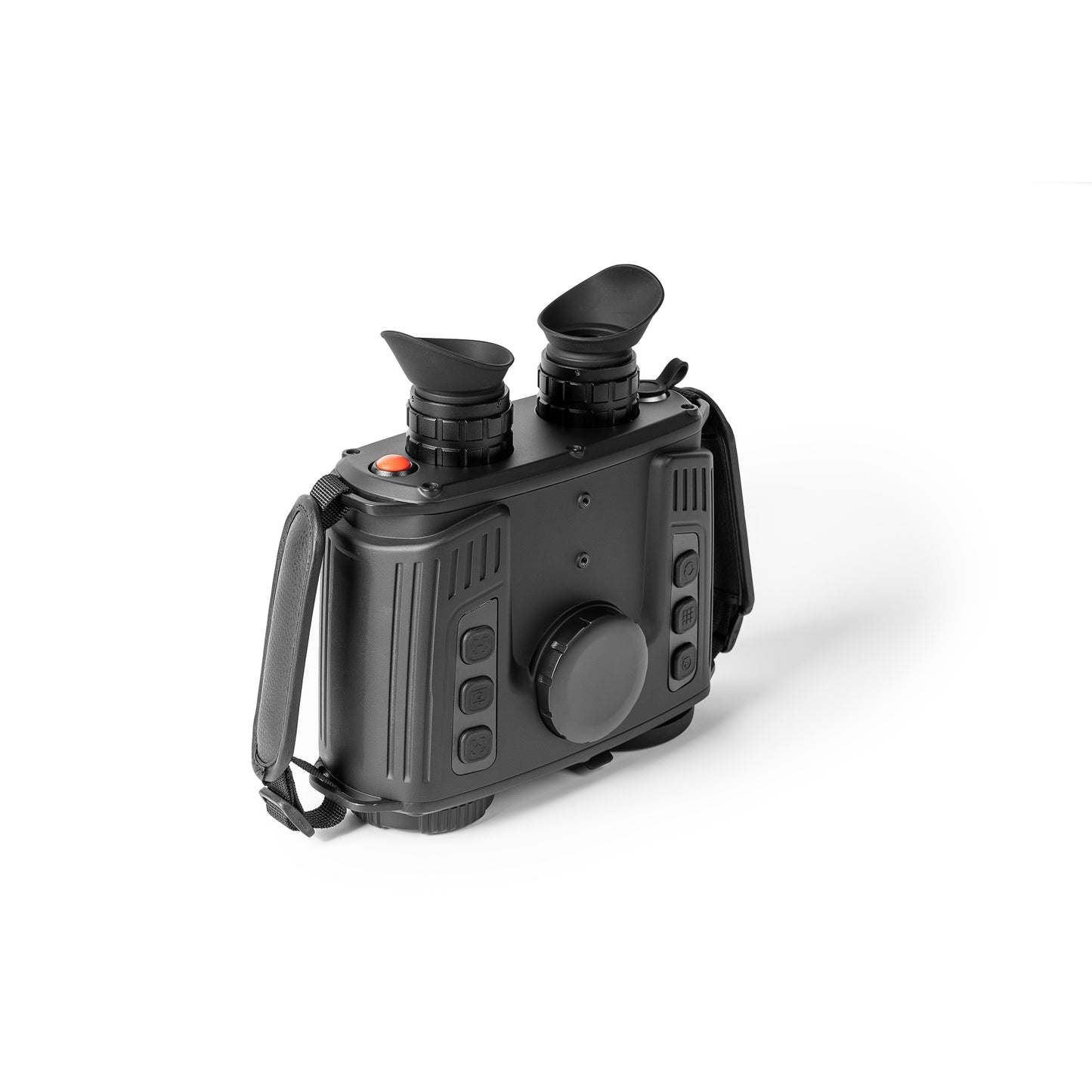

Day and night dual-vision thermal imaging camera wireless WIFI Outdoor Thermal Imaging Camera

Detector Type: VOx

Infrared resolution: HT-C600 384×288  HT-C640 640×512 HT-C680 384×288 HT-C690 640×512

Image Size: 12μm

Angle of vision: HT-C600 5.3°x4°  HT-C640 8.8°x7.0° HT-C680 5.3°x4°  HT-C690 8.8°x7.0°

Noise Equivalent Temperature Difference (NETD):                                                                   HT-C600/HT-C640≤50mk@25°C,@F/1.0 @f/1.0

   HT-C680/HT-C690≤50mk@25°C,@F/1.0 @f/1.0

Frame rate: 50Hz

Focusing method: Motorized Focus

Display screen: 0.39-inch OLED

Display resolution: 1024x768

Display mode: Infrared/Ember/Dual Light Fusion/Picture-in-Picture

Electronically variable (zoom): 1x /2x /4x

False-color mode: Rainbow, Iron Red, Cold Colors, White Heat, Black Heat

WIFI: 2.4G image transmission

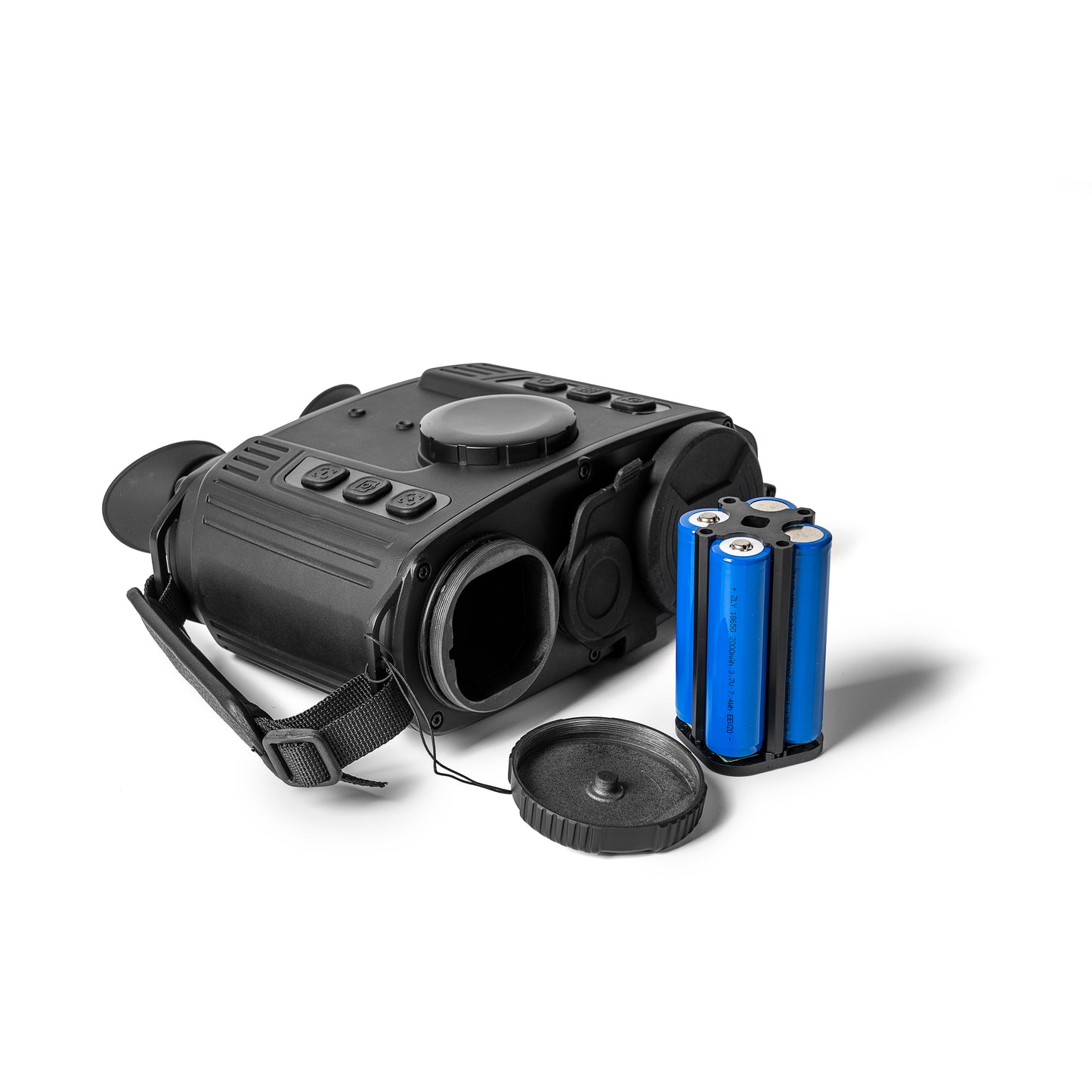

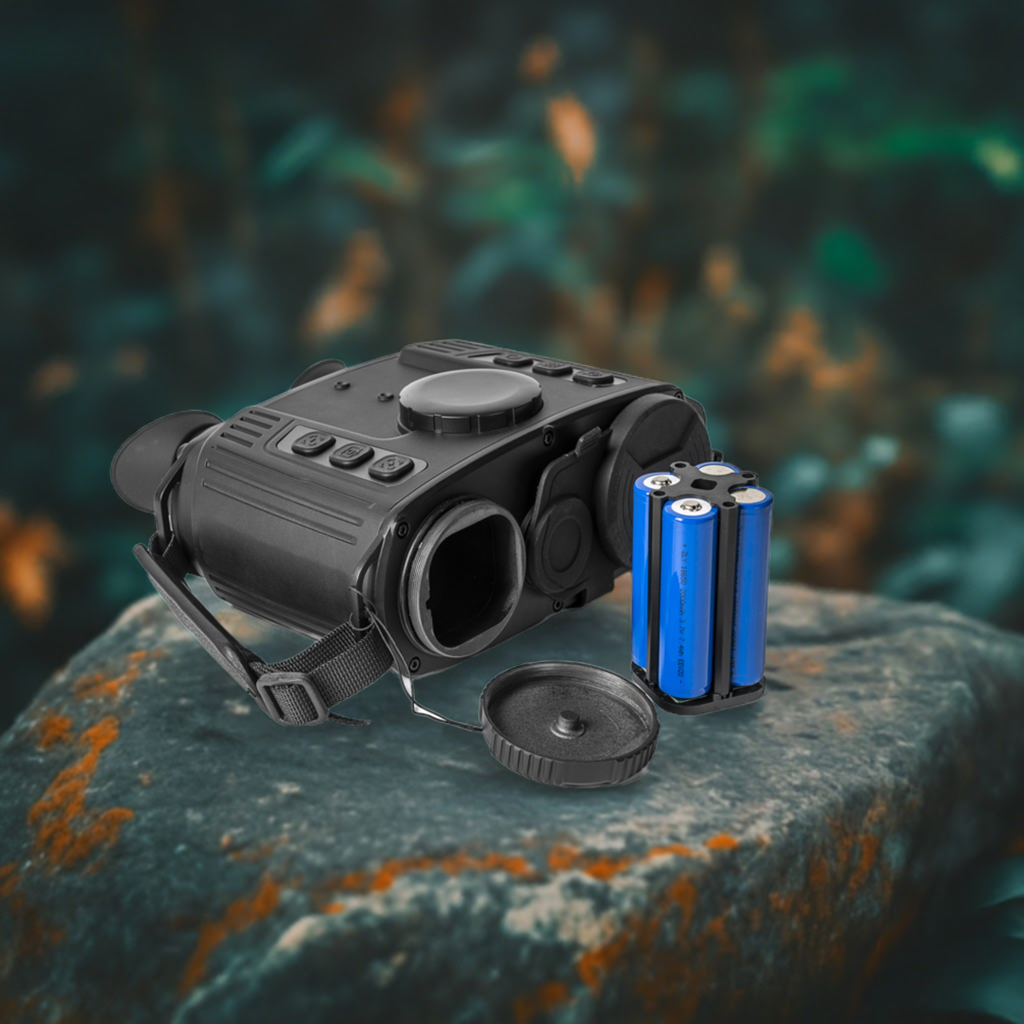

Battery: 18500 removable rechargeable lithium battery (2040mAh*4/3200mAh*2)

Endurance: HT-C600/640  ≥6 hours  HT-C680/690 ≥4 hours

Storage temperature: -30℃~+70℃

Size: HT-C600/640 193.1x176.8x99mm HT-C680/690 92.8x86.9x189.6mm

Weight: 1.65kg

Detection distance：Figure 2361m                                                                                                                       Vehicle 6250m

Recognize distance:  Figure 590m                                                                                                                          Vehicle 1563m
