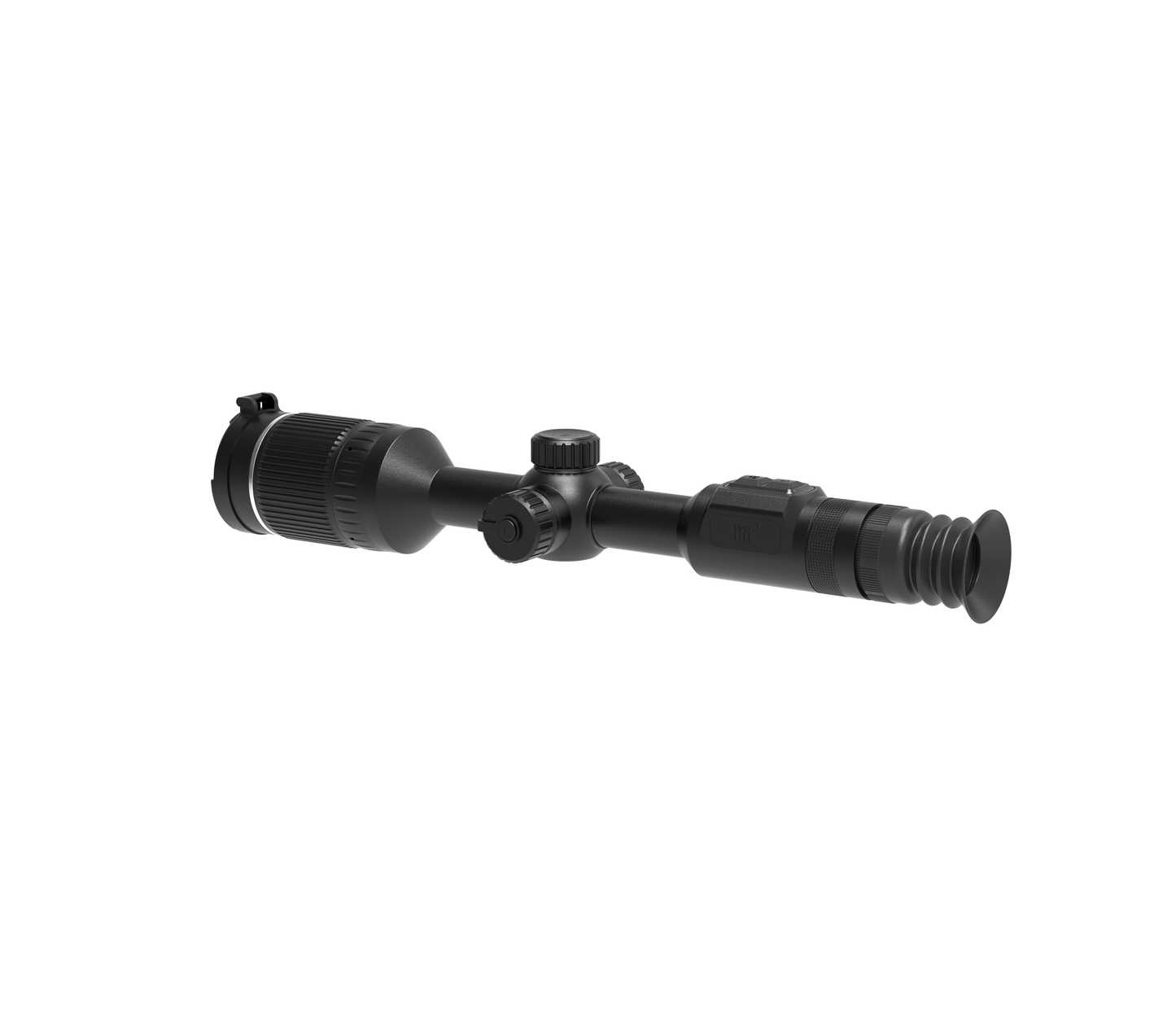

Monocular observation, easy to be carried by a single person for frontal observation High pixel, easy to operate, strong anti-vibration ability
Detector Type: Vanadium Oxide Uncooled Infrared Focal Plane
Infrared Resolution: HT-C22 384×288 HT-C23 640×512
Noise Equivalent Temperature Difference (NETD): HT-C22 ≤ 40mk@25℃, @f/1.0
HT-C23 ≤ 50mk@25℃, @f/1.0
Operating Band: 8μm ~ 14μm
Image Size: 12μm
Angle of vision: 10.7°×8.2°
Display screen: 0.39-inch OLED
Display resolution: 1440×1080
Electronically variable (zoom):1x/ 2x /4x /8x
Visual adjustment: ±5SD
Impact: ≤1000G
Color palette: White Hot, Black Hot, Fire Hot, Rainbow, Iron Red, Cold Color
Languages: Simplified Chinese, Traditional Chinese, English
Power wastage: ≤1.8W
Endurance: ≥5 hours
USB port: Type-C, charge/export images and videos
Battery: 18650 rechargeable lithium battery
Working temperature: -20°C~60°C
Storage temperature: -30°C~70°C
Size: 418.61x103.58mm
Weight: 1035g
Camera lens: 54mm
Detection distance：Figure 1.7mx0.5mx0.3m 2550m
Vehicle 4.5mx2.0mx1.5m 6750m
Recognize distance:
Figure 1.7mx0.5mx0.3m 638m
Vehicle 4.5mx2.0mx1.5m 1688m
