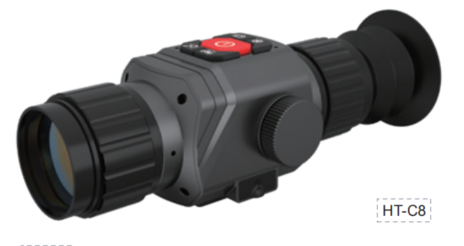

Day and night thermal imaging camera Outdoor Thermal Imaging Camera

Detector Type: Vanadium Oxide Uncooled Focal Plane

Infrared Resolution: HT-C8 384×288    HT-C8D 256× 192

Image Size: HT-C8 17μm    HT-C8D 12μm

Frame rate: HT-C8 ≤ 50Hz    HT-C8D ≤ 25Hz

Operating Band: 8μm ~ 14μm

Focal length: HT-C8 25mm/35mm/54mm    HT-C8D 16mm/25mm

Angle of vision: HT-C8 14.9°×11.2°/10.7°×8.0°/6.9°×5.2°

                         HT-C8D 9.24°×7.08°/7.03°×5.39°

Noise Equivalent Temperature Difference (NETD): HT-C8 ≤ 40mk@25℃, @f/1.0

                                                                               HT-C8D ≤ 50mk@25℃, @f/1.0

Visual adjustment: HT-C8 ±4SD    HT-C8D ±5SD

Display (resolution): HT-C8 0.39-inch OLED (1024×768)
                                HT-C8D 0.39-inch OLED (1440×1090)

Electronically variable (zoom): HT-C8 2x /4x /8x /16x    HT-C8D 1x /2x /4x

Color palette: HT-C8 White hot, black hot, rainbow, hot metal, yellow saturated, birding mode             HT-C8D White hot, black hot, red hot, rainbow, iron-red, shimmering

Languages: HT-C8 Chinese, English   HT-C8D Simplified Chinese, Traditional Chinese, English, Russian

Built-in storage: HT-C8 Standard 16G EMMC  HT-C8D Standard 18G EMMC

Battery: 18500 removable rechargeable lithium battery (2040mAh)

Endurance: HT-C8  ≤6 hours  HT-C8D ≤5 hours

Storage temperature: HT-C8  -30℃~+60℃  HT-C8D  -30℃~+70℃

Protection class: HT-C8  ≤IP66  HT-C8D  ≤IP65

Impact: HT-C8  ≤1200G  HT-C8D  800G IEC 68-2-29

Camera lens: 19mm/25mm/35mm/54mm

Detection distance：Figure 897 m/1181 m/1653 m/2550 m                                                                                 Vehicle 2375 m/3125 m/4375 m/6750 m
                                  Boar  792 m/1042 m/1458 m/2250 m
