TH-RXY400 Thermal Imaging Night Vision Monocular, Short/Medium Range Thermal Imaging Rifle Scope 384x288

TH-RXY400 outdoor thermal imaging telescope, with advanced uncooled focal plane infrared detector and high-quality optical lens as the core, combined with a convenient operating system, compact design, functionality of the expansion of the spare parts, the use of a long battery life, durable, applicable to a variety of environments, to create a “clear image, simple to operate, easy to carry” thermal imaging tool for users.
It is a “clear image, simple operation, easy to carry” infrared thermal imaging tool for users.
This product is used in wild animal observation, search and rescue, police law enforcement investigation, night patrol, outdoor sports, personal security and so on. This product has a camera function, can be connected to a computer via USB to browse the photos taken, convenient for multiple people to observe at the same time, for more applications to create the possibility.
Precautions and Safety Maintenance
To ensure the correct use of this product, please read the instructions carefully:
 Do not use this product in a flammable, explosive, humid or corrosive environment.
 This product contains precision electronic and sensitive optical components, please do not impact and drop to avoid damage.
 Do not disassemble or modify this product.
 Clean the case of the product with a damp cloth or weak soap, do not use abrasives, isopropyl alcohol or solvents, and use professional optical lens cleaner for the lens and screen.
 This product works every few seconds there will be a slight click, this is the lens shutter sound, is a normal phenomenon.
 Warning, you can not use the lens to look directly into the sun, it will damage the optical lens.
Performance indicators
1、Detector type: uncooled focal plane
2, detector resolution: 384x288 infrared focal plane
3, detector pixel pitch: 17um
4, Detector frame rate: 50Hz
5, Detector response band: 8um-14um
6, Detector noise equivalent temperature difference: <50mk
7、Focal length of infrared lens: 35mm, 54mm, 75mm.
8、Lens adjustment: manual focus, adjust the clarity
9, infrared lens field of view angle: 10.7 ° x 8.0 °; 6.9 ° x 5.2 °; 5.0 ° x 3.7 °
10, image processing: non-uniformity correction, image smoothing function, image detail enhancement, digital filtering noise reduction.
11, image detail mode: 5 image edge adjustment ( 0-4), or 5 image detail adjustment (0-4).
12, electronic zoom: 2x, 4x, 8x, 16x
13, brightness adjustment: 10 brightness adjustment ( 0-9)
14, Contrast adjustment: 10 grades of contrast adjustment ( 0-9)
15, Palette: 6 types of palette, rainbow, hot metal, white hot, black hot, yellow saturated, bird watching mode.
16, hot tracking: hot tracking instructions, automatically track multiple hot targets, you can also choose to turn on or off the hot tracking function.
17, Crosshair: 7 types of crosshair cursors, change different cursors at will to accurately locate the target, you can also choose to turn on or off the crosshair.
18, cursor distance calibration: according to different distances, calibration cursor positioning, change the target distance cursor at any time, accurate targeting.
19、 Target distance ( 35mm lens)
a. People: detection distance: 1667 meters, recognition distance: 471 meters.
b, wild boar: detection distance: 1471 meters, recognition distance: 367 meters
c, vehicles: detection distance: 2501 meters, identification distance: 626 meters
20、 Target distance ( 54mm lens )
a, people: detection distance: 2334 meters, recognition distance: 584 meters
b, wild boar: detection distance: 2059 meters, recognition distance: 514 meters
c, vehicles: detection distance: 3501 meters, recognition distance: 876 meters
21、Storage capacity: 16G
22, Image Type: BMP
23, USB: Type-C
24, Battery type: 18500 Panasonic lithium battery; 2040mAH
25, Operating time: 6 hours
26, Automatic shutdown time: 40 minutes
27, Package Type: Metal
28, Impact resistance: 800G IEC68-2-29
29、Weight: 500g

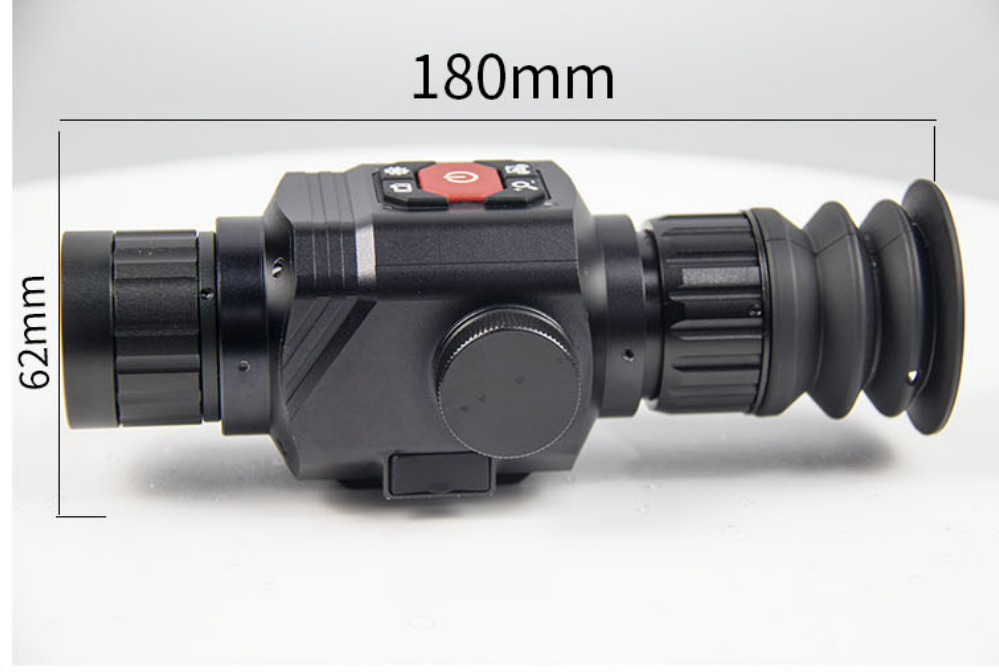

30、Product size: 180x72x62mm ( 35mm focal length)
31、Protection grade: IP66
32、Operating temperature: 0 ℃ to 45 ℃
33, Storage temperature: -20 ℃ to 60 ℃
34、Power consumption: 1w
