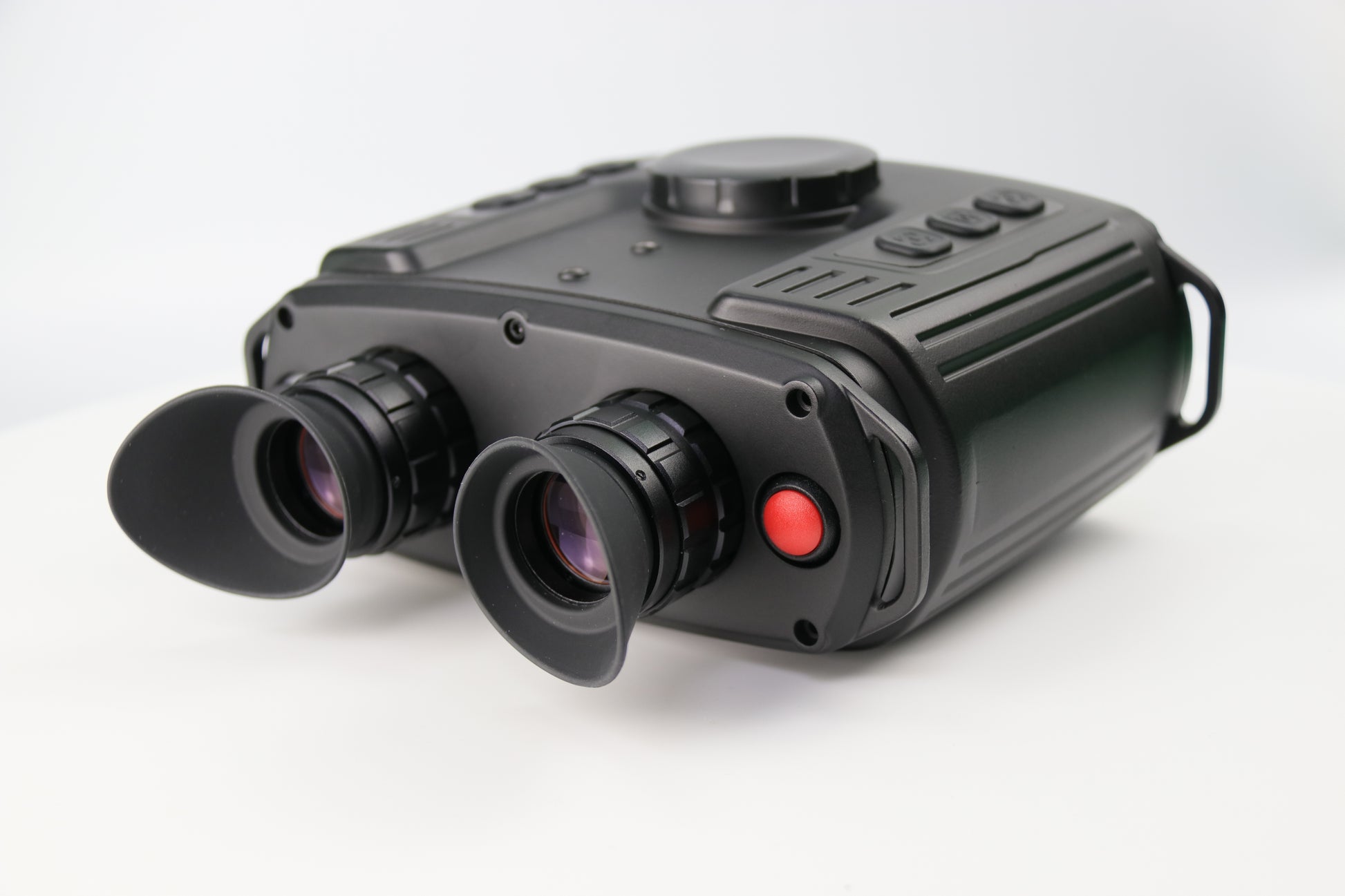

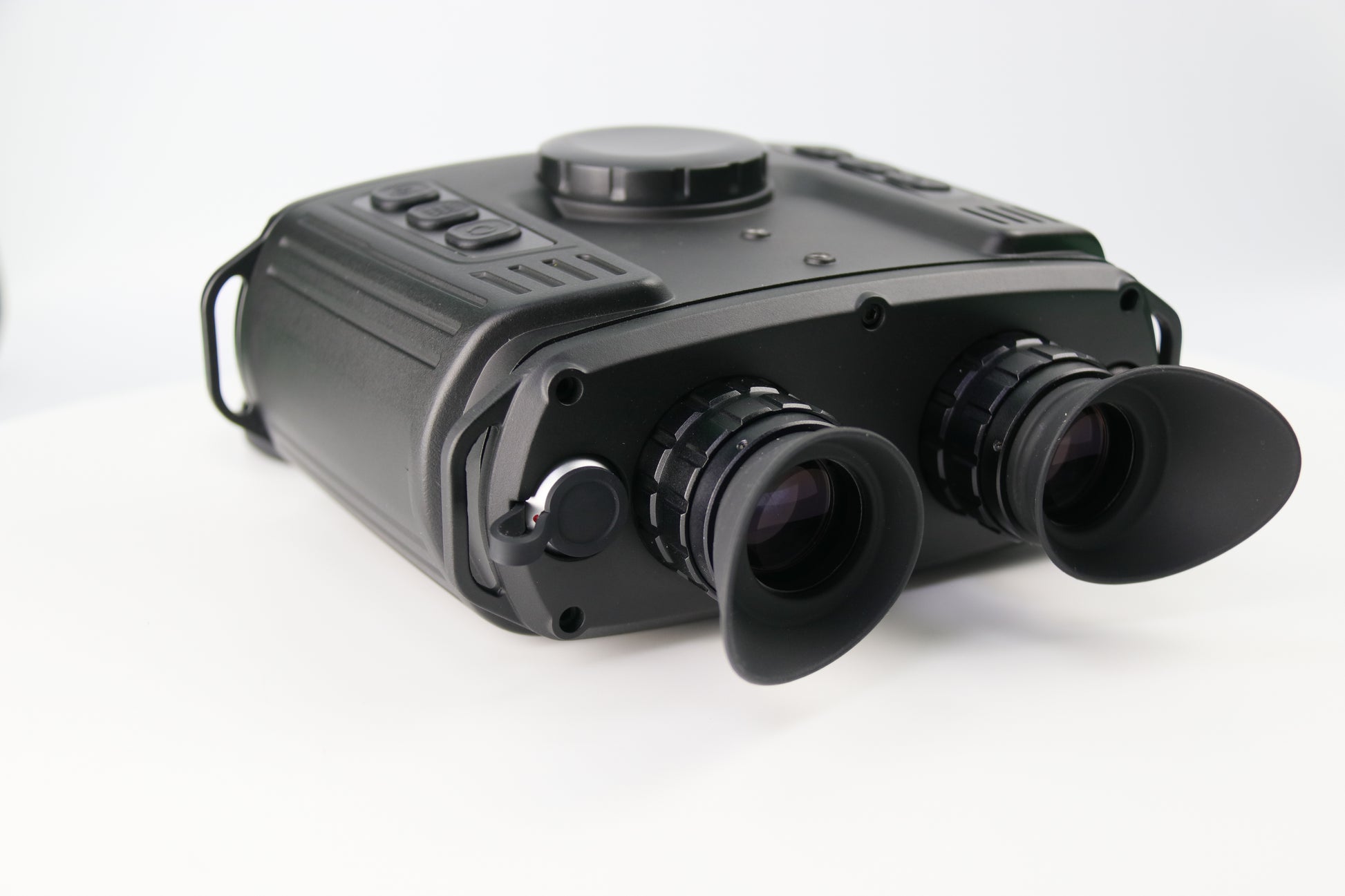

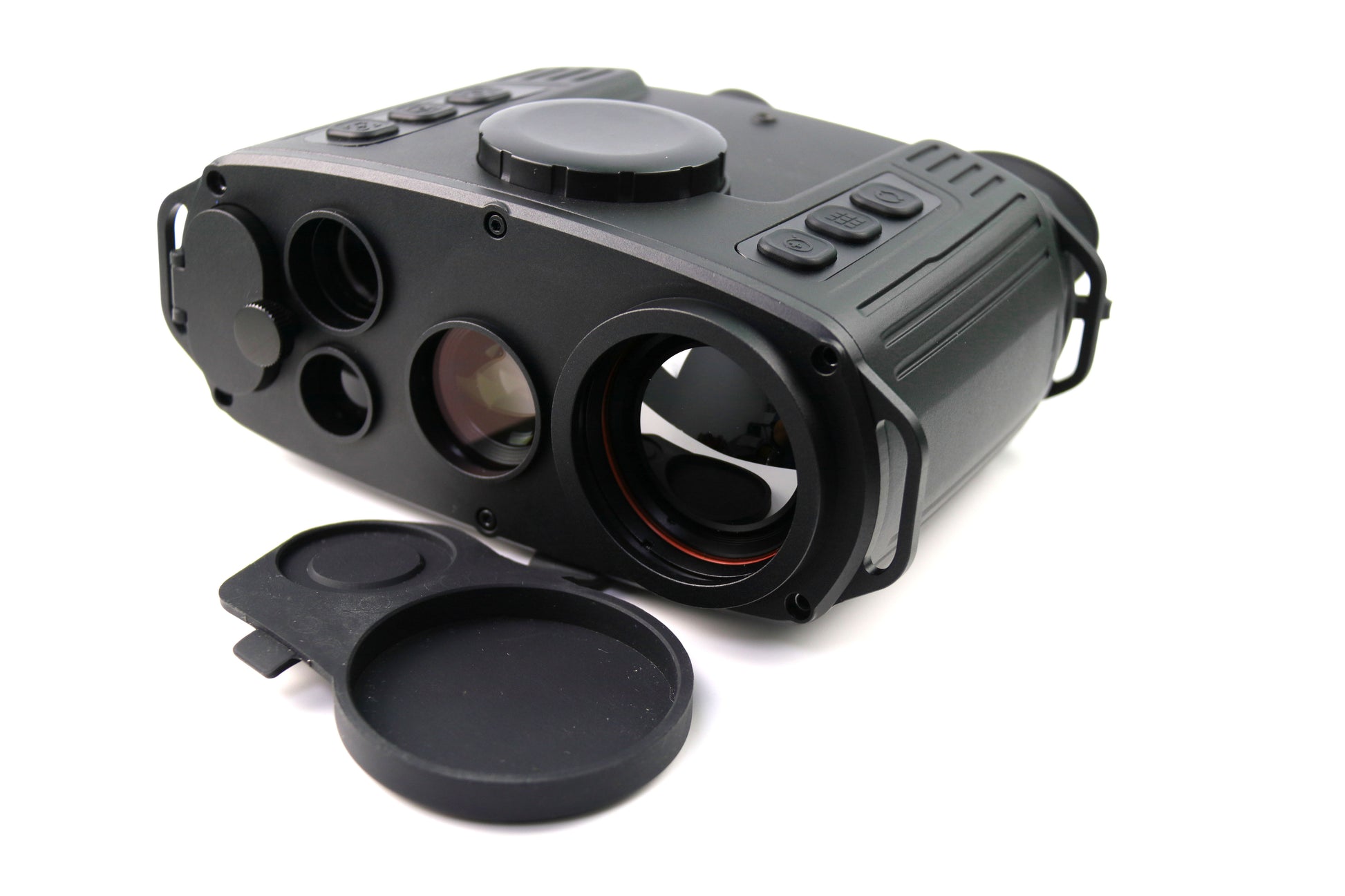

TH-SG880 Dual Light Fusion Thermal Imaging Binocular Night Vision (Telescope)

OVERVIEW
The binocular fusion thermal imager (hereinafter referred to as thermal imager) adopts the integrated technology of ultra-low illumination COMS, infrared thermal camera, electronic compass, GPS, video compression, storage and control, etc. It can be used day and night for tactical reconnaissance, surveillance and identification of camouflaged targets. It can be used day and night for tactical reconnaissance, surveillance and identification of camouflaged targets, and is characterized by its small size, ease of carrying and use, and good environmental adaptability.
The thermal imager is easy to be carried by a single person for frontier observation, and is also suitable for fixed observation post set up for observation, day and night observation of the target, photography and video recording. It can be widely used in patrol, investigation, law enforcement, anti-smuggling, anti-drug, forest fire and emergency search and rescue and other occasions.
Safe use and maintenance
Precautions for the use of equipment: (1) Prohibit direct observation of the sun when using the equipment; (2) When the equipment fails and other unknown circumstances, please contact the manufacturer, do not dismantle it without authorization.
Daily maintenance of the equipment: (1) After using the equipment, please wipe the equipment to avoid water and dirt on the surface of the equipment and the objective lens, and cover the lens cap; (2) When the equipment is not used for a long period of time, please take out the batteries from the equipment and store them together with other accessories.
Infrared
Model TH-SG880
Detector type Amorphous silicon uncooled infrared focal plane
Resolution 384x288
Image size 17μm
Field of view 7 . 5°×5 . 6°
Operating band 8~14μm
NETD <50mk@25℃, @f/1 . 0
Focal length 50mm
Frame rate ≤50Hz
Focusing mode Motorized focusing
Detection distance
People (1 . 7mx0 . 5mx0 . 3m) 3333 meters
Vehicle (4 . 5mx2 . 0mx1 . 5m) 8823m
Recognition Distance
People ( 1 . 7mx0 . 5mx0 . 3m) 833m
Vehicle ( 4 . 5mx2 . 0mx1 . 5m) 2205m
Shimmering
Detector type Ultra-low-light CMOS
Resolution 1920×1080
Image size 4 . 0μm
Focal length 35mm
Frame rate ≤30Hz
Focus mode Focus-free
Display
Display Screen Type OLED
Resolution 1024x768
Display Size 0 . 39 inches
Display Mode IR / Shimmer / Dual-light Fusion / Picture-in-Picture
Electronic zoom 1X /2X /4X
Viewing Adjustment ±4SD
Color palette Rainbow, Iron Red, Cold Color, White Hot, Black Hot
Other Functions
WIFI 2 .4G image transmission
Electronic compass Square angle display
Positioning GPS/BD
Distance Measuring
Range 9m - 2500m
Ranging accuracy <400m, ±1m; >400m, 0.4%.
Storage
Capacity Built-in 16G eMMC (Note: the usable storage capacity is less than this value, because the system software occupies a certain amount of space).
Photo Support
Video Support
Picture/video format JPG/MP4

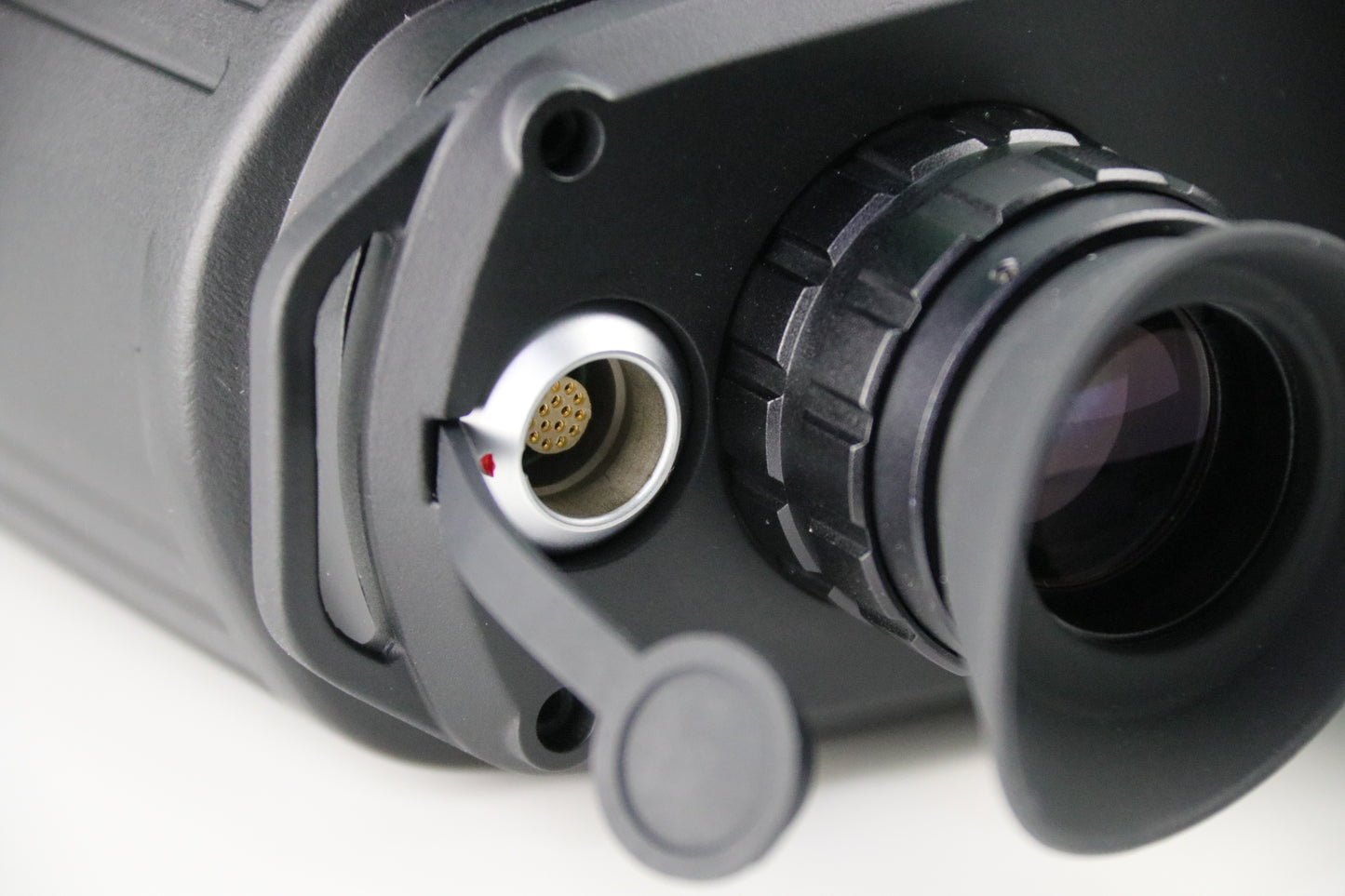

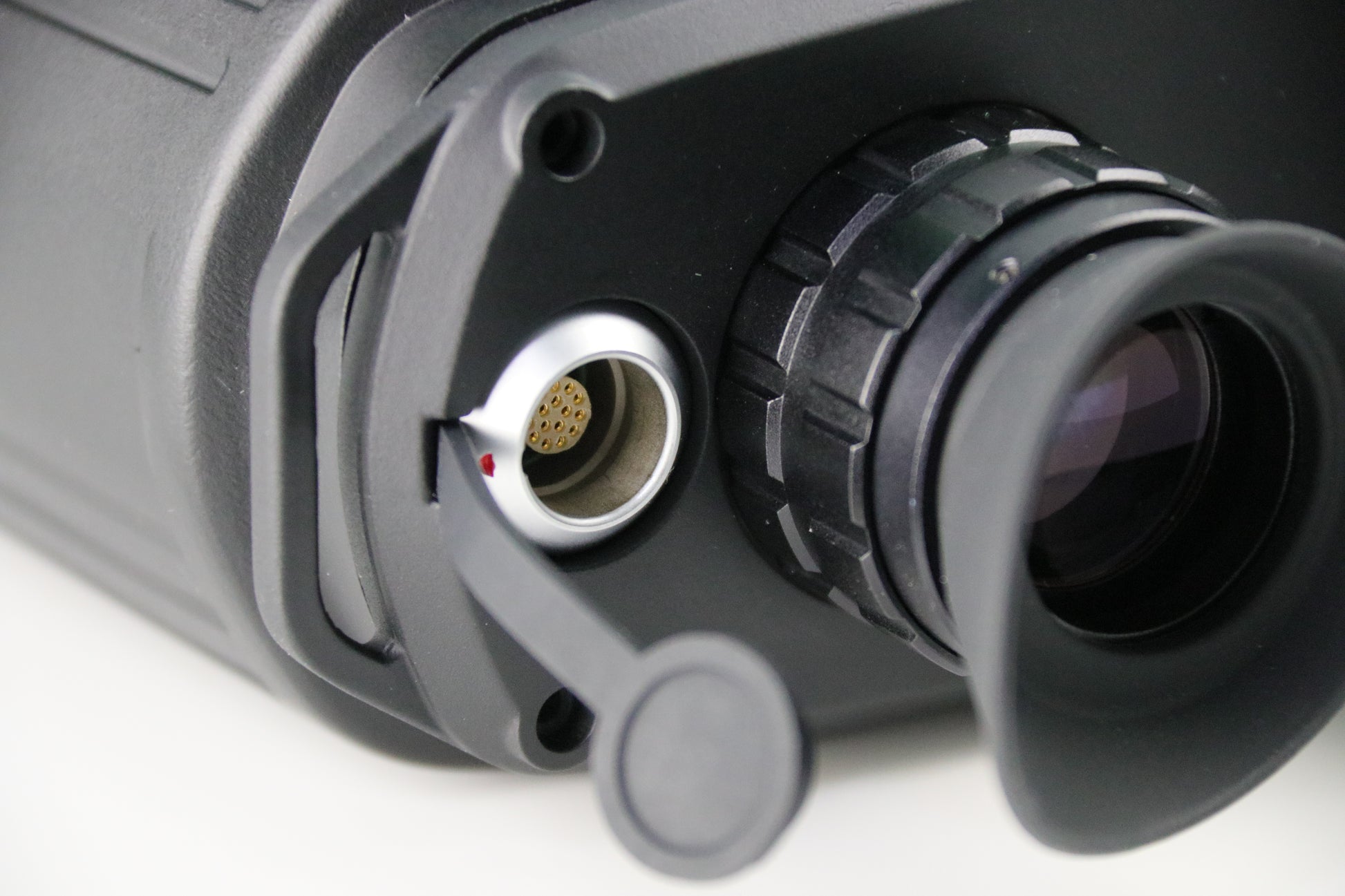

Interface
CVBS output PAL video output
USB port Export pictures and videos
External power supply DC12/ 1A
Power Supply

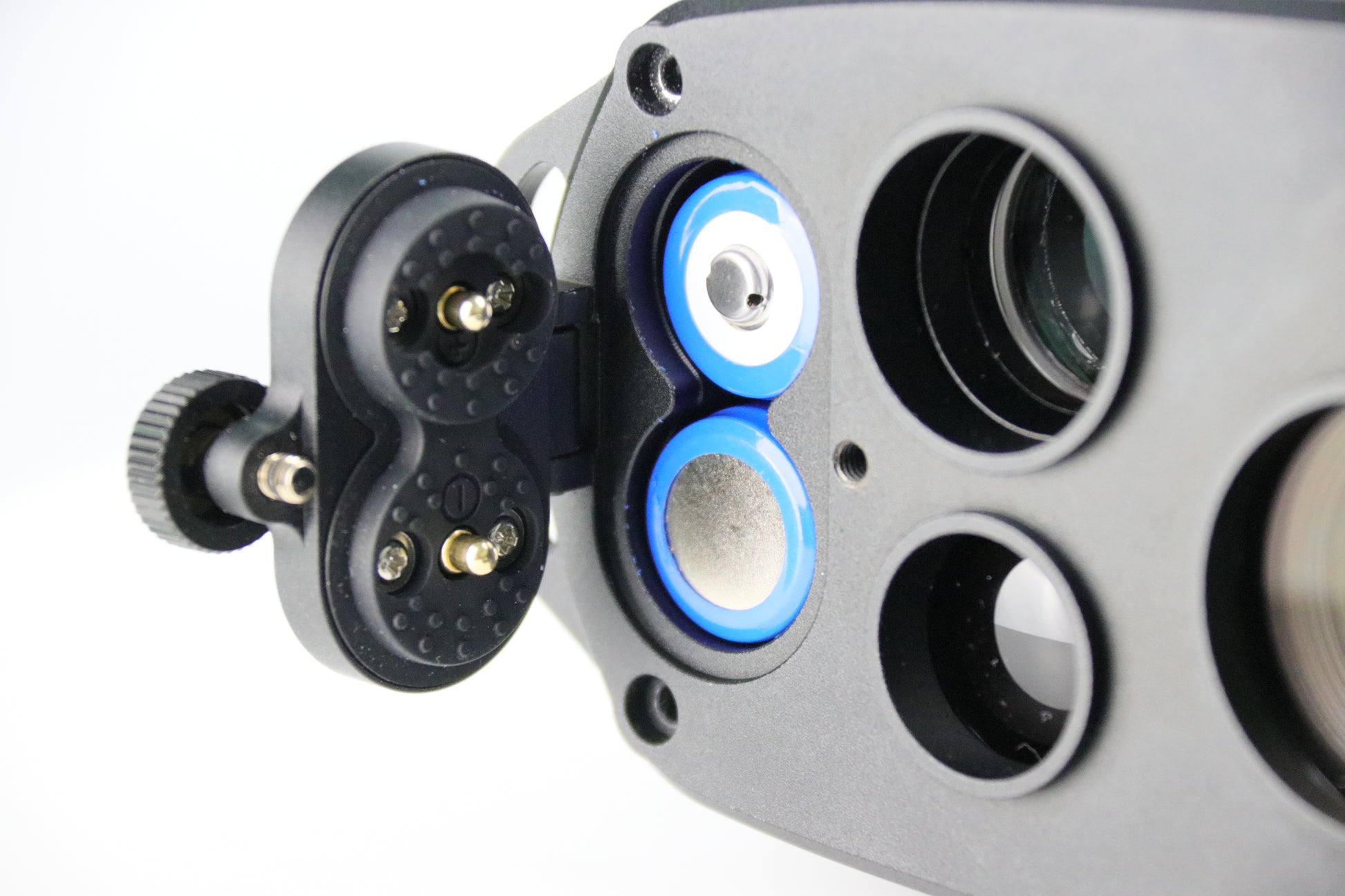

Removable rechargeable lithium battery 3200mAhx2 (battery type 18650)
Battery charging method Individual charging stand
Power consumption ≤6W
Battery life ≥4 hours
Working/Storage Environment
Operating temperature - 20℃ to +50
Storage temperature - 30℃ to +70
Shock ≤30g
Protection class IP54

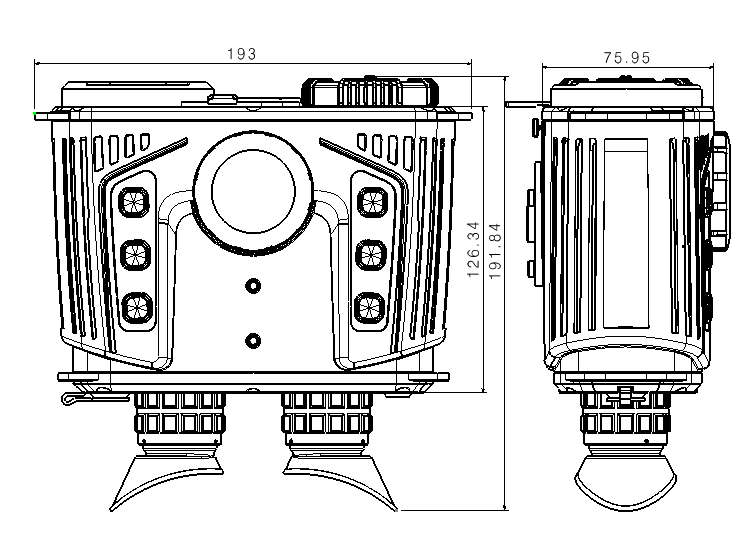

Dimension/Weight
Dimensions 192 8mmx86 9mmx189 6mm
Weight 1 . 58kg(with battery)
