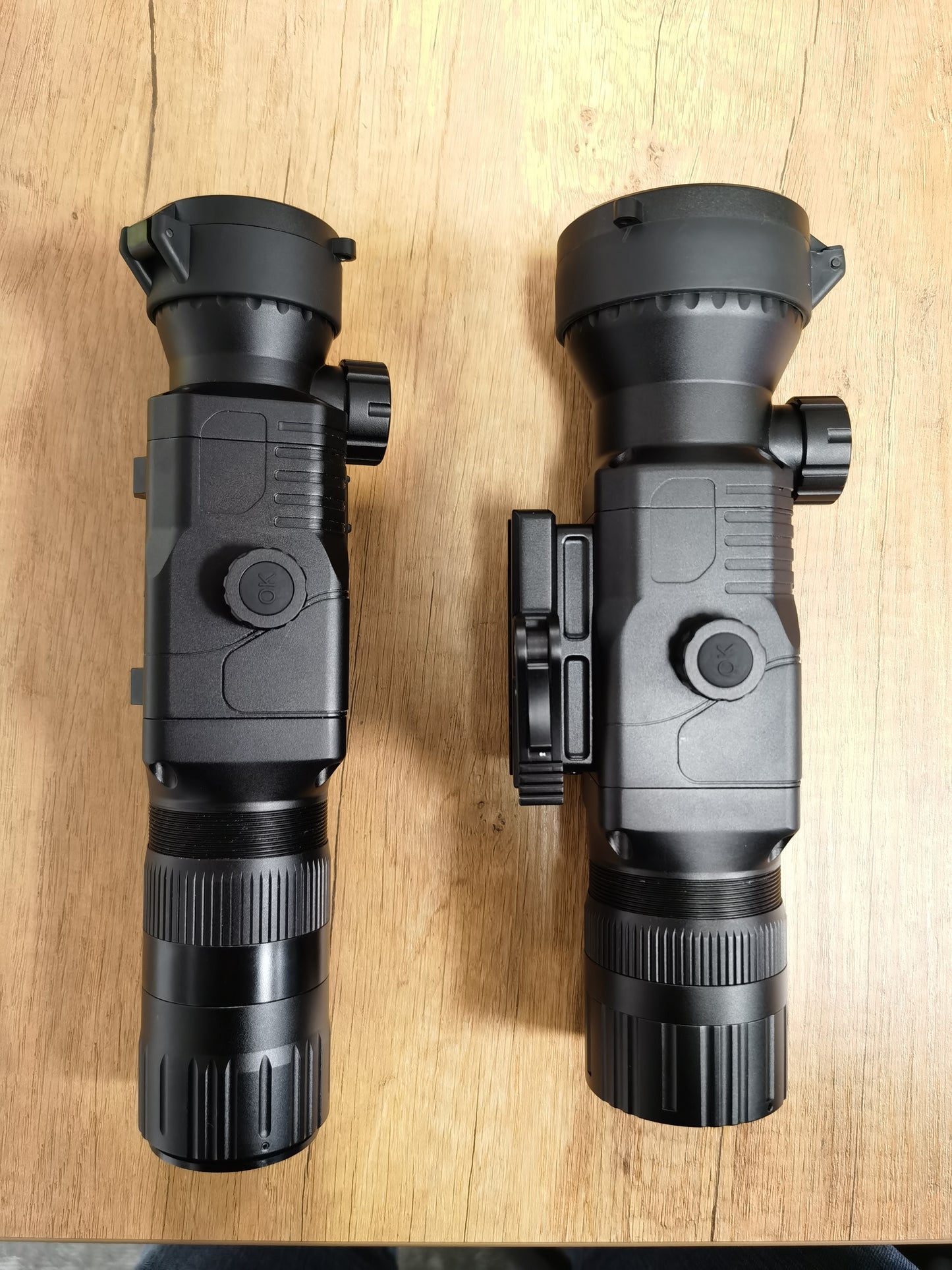

TS Clip-on Thermal scope
TS Clip-on Thermal scope
Ø 35mm/50mm lens Options ,12μm pixel pitch，384/640 pixels Array
Ø Built-in Photos/videos recording functions and also support WIFI transmission
Ø 0.49 inch OLED 1440*1080 resolution display
Ø Alloy housing ,protection IP67,meet requirement in harsh environment
Ø Shock Resistance Up to 800g/ms ,and Impact resistance up to 6000J
Ø Clip-On mode or standalone mode
|
Item |
TS335 |
TS650 |
|||
|
Sensor |
Type |
Uncooled Vox FPA Micro bolometer |
|||
|
Pixel Array |
384×288 |
640×512 |
|||
|
Pixel Pitch |
12μm |
||||
|
NETD |
≤35mk(25 °C, F#=1.0) |
||||
|
Image |
Focal Length |
35mm |
50mm |
||
|
FOV(±5%) |
7.5°*5.7° |
8.8°*7.0° |
|||
|
Min Focus |
2m |
5m |
|||
|
Lens Aperture |
F1.0 |
F1.0 |
|||
|
Frame Rate |
50HZ |
||||
|
Focus method |
Manual |
||||
|
Display |
Display |
0.49 inch Color OLED 1440*1080 Resolution |
|||
|
Exit Pupil Diameter |
/ |
||||
|
Exit Pupil distance |
55mm（standalone） |
||||
|
Eyepieces Magnification |
11.2X |
||||
|
Basic Magnification |
Clip on ：X1 Standard：X3.25 |
Clip on：X1 Standard：X2.72 |
|||
|
Diopter |
Adjustable，-5D~+5D |
||||
|
Thermal imaging Operation |
Brightness/Contrast |
Adjustable |
|||
|
NUC |
Auto/Manual |
||||
|
Polarity |
Black/White/Green/Iron/Red Hot |
||||
|
Digital Zoom |
X1.0~8.0 |
||||
|
Cross hail |
Support .Up to 10 kinds |
||||
|
Hot Spot track |
Support |
||||
|
PIP |
Support |
||||
|
Bad Pixel correction |
Support |
||||
|
WIFI |
Support . AP/WLAN |
||||
|
Memory |
Capacity |
32G |
|||
|
Audio Record |
Support |
||||
|
Impact Video Recording |
Support |
||||
|
Recording Type |
Photo/Video |
||||
|
Power Supply |
Battery Type |
Two Power supply Support , Built in type plus external Battery (CR123*1) |
|||
|
Power working Status |
Support |
||||
|
Working Time |
≥4 Hours |
||||
|
Environment |
Shock Resistance |
800g/ms |
|||
|
Vibration Resistance |
2g，GB/T2423.10（IEC60068-2-6） |
||||
|
EMC |
CE Complied |
||||
|
Humidity |
0~95% |
||||
|
Working Temperature |
-30℃~+55℃ (-22 °F to 131°F) |
||||
|
Physical |
Housing Color |
Black |
|||
|
Mounting |
Suitable to 20 /40mm day traditional Scope (Clip on) Mounting with 20 mm Picatinny rail |
||||
|
Encapsulation |
IP67 |
||||
|
Dimension |
Clip on：187.5×70×83.4mm Standard：220×70×83.4mm |
Clip on ：187.5×70×83.4mm Standard ：220×70×83.4mm |
|||
|
Weight |
≤350g |
≤380g |
|||
|
Interface |
Power Supply |
Type-C interface (Charging ,Data Transmission, External Video output ) |
|||
|
Detection distance |
1600m |
2300m |
|||
|
Car（2.3×2.3）m |
2200m |
3200m |
|||
|
Recognition Distance |
People（1.8×0.5）m |
800m |
1150m |
||
|
Car（2.3×2.3）m |
1100m |
1600m |
|||
Detector type: uncooled focal plane vanadium oxide Pixel: 384 × 288 Pixel pitch: 12μm NETD: ≤ 20mk (25 ° C, F # = 1.0) Focal length: 35mm Field of view (± 5%): 7.5 ° * 5.7 ° Minimum focusing distance: 2m Lens aperture: F1.0 Frame rate: 50Hz Focusing mode: manual Monitor: 0.49 inch color OLED 1440*1080 resolution Exit Pupil Diameter: Front: 10mm Standard Viewing: 6mm Exit Pupil Distance: Front: 46mm Standard Viewing: 50mm Eyepiece Magnification: 3X Base Magnification: Front Mode: X1 Standard Viewing Mode: X3.25 Polarity Shift: Black Hot/White Hot/Green Hot/Iron Red/Red Hot Classification: 10 Hot Spot Tracking/Picture-in-Picture/Bad Spot Repair/Record/ Recoil activated recording: Yes Operating time: 4H Impact resistance:800G/MS Operating temperature:-30°C~+55°C (-22 °F to 131°F) Protection rating:IP67 Dimensions:Front mode:187.5×70×83.4mm Standard viewing mode:220×70×83.4mm Weight (front mode):≤515g.
